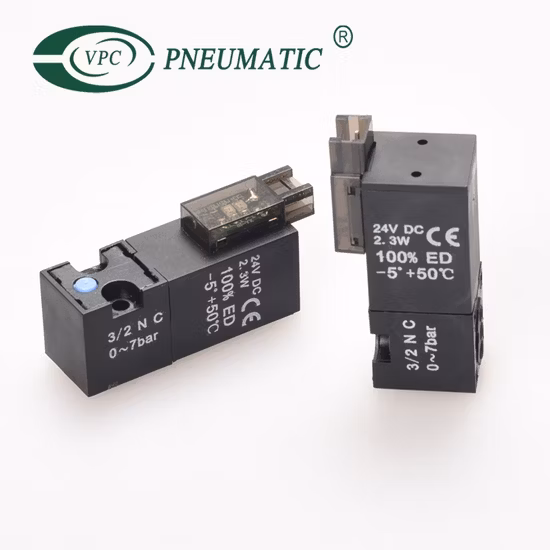

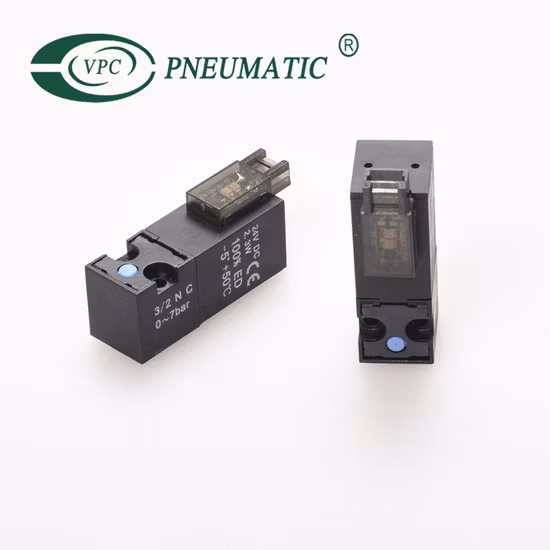

10mm (15mm) DC24V 3/2 Micro Plastic Solenoid Valve for Sock Knitting Machine
Description
Basic Info.
| Model NO. | VSV23-10L |
| Connection Form | Tubular |
| Type | Direct Acting |
| Material | Carbon Steel |
| Pressure | Ordinary Pressure |
| Valve Structure | Step by Step Structure of Direct-Acting Piston Structure |
| Power Supply | DC Solenoid Valve |
| Usage | Safety, Drain, Temperature Control |
| Standard | BSW |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Reflect Time | ≤20m/S |
| Manual Mode | Button Type |
| Working Temperature | -5~50ºC |
| Brand | Vpc |
| Working Medium | Air |
| Heat-Resistant Class | IP65 |
| Certificate | ISO9001:2008 Ce |
| Max.Pressure | 1.5MPa |
| Working Pressure | 0-0.7MPa |
| Port Size | 1/8′′ |
| Transport Package | Color Box; Brown Box; Pallet |
| Specification | 10x5x5cm |
| Trademark | VPC |
| Origin | China |
| HS Code | 8481802190 |
| Production Capacity | 50000000/Day |
Packaging & Delivery
Package Size 5.00cm * 5.00cm * 2.00cm Package Gross Weight 0.010kgProduct Description
10mm 15mm Micro Plastic Solenoid Valve for sock knitting machineProduct Description
15mm Vsv Micro Mini Pneumatic Solenoid Electric Valvulas Valve
Two-Position Three-Way miniature solenoid valve
High quality low price
One year warranty
Low consumption(2.3w)
Product specifications
| Model | VSV23-1.4LV | VSV23-1.4LH | VSV23-1.4LC |
| Working Medium | Clean Air(40µm filteration) | ||
| Acting Type | Direct Acting | ||
| Working Pressure | 0~0.7Mpa | ||
| Working Temperature | -5~50°c | ||
| Response Time | ≤20m/s | ||
| Max Acting Frequency | 20 times/s | ||
| Manual Operated Type | Button | ||
| Lubricate | No required | ||
| Heat Resistant Grade | F | ||
| Protective Class | IP65 | ||
| Standard Voltage | DC24V | ||
| Allawable Voltage Range | ±10% | ||
| Orifice | 1.4mm | ||
| Wattage | 2.3watts(with indicator light) | ||
| Plug Type | Vertical | Horizontal | Plug |
Also we can produce many special products base on clients' requirement.
High-frequency pilot head
Frequency 15 Hz (15 times/s) or moreSingle/Double coils are optional , can be arbitrarily matched1.2W low power consumption,energy efficiency environmentally friendly
Product Parameters
Detailed Photos
Catalogue
Company Profile
FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: It depends on your order quantity. Normally it will take 10-15 days for our routine products.
Q4:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5:How about the warranty?
A: 1 year.
