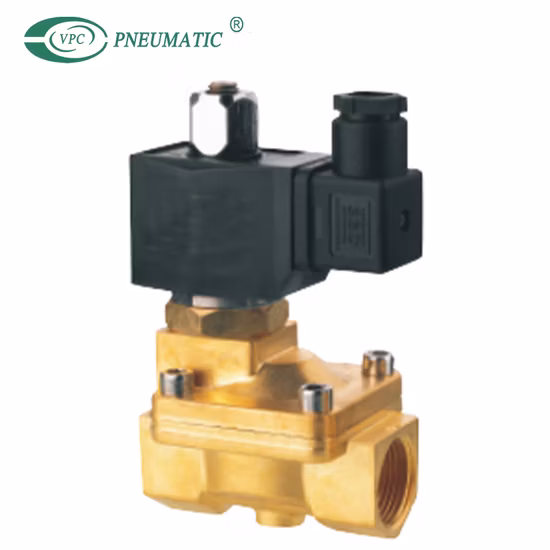

Us Series Stainless Steel F Class Insulation 12V Two Way Normal Open Direct Acting Guide Water Air Solenoid Valve

Basic Info.

Model NO.	2S200-20
Pressure	Low Pressure
Valve Structure	Direct Action Diaphragm Structure
Power Supply	DC Solenoid Valve
Usage	Safety, Emptying, Drain, Temperature Control, Flow Control
Standard	DIN
Application	Industrial Usage, Water Industrial Usage, Household Usage
Transport Package	Carton Pallets
Specification	1/4" 3/8" 3/4" 1" 1-1/4" 1-1/2" 2"
Trademark	ALITA PNEUMATIC
Origin	China
HS Code	8481802190
Production Capacity	1000000 Set/ Month

Product Description

1/2" 3/4" 1" to 2" stainless steel normally open Electric Solenoid Valve,Pneumatic Valve for Water Oil Gas AC 220V DC 12V DC 24VSpecification of Top quality air gasoline miniature solenoid valve:

Model	2W025-06	2W025-08	2W040-10	2WH012-06	2WH012-08	2WH020-10

	2S025-06	2S025-08	2S040-10	2SH012-06	2SH012-08	2SH020-10

Working Medium	Air, Water, Oil, Gas,Fuel

Motion Pattern	Direct Drive Type

Type	Normal Close Type ; Normal Open Type

mmAperture of Flow Rate	2.5		4	1.2		2

CV Value	0.23		0.6	0.05		0.15

Joint Pipe Bore	G1/8″	G1/4″	G3/8″	G1/8″	G 1/4″	G 3/8″

Operation Fluid Viscosity	20 CST (Below)

Working-pressure	0~0.7MPa			0~2.0MPa

Max. Pressure Resistance	1.0MPa			3.5MPa

Operating Temperature Range	-5 ~ +80 ºC

Voltage Range	±10%

Material of Body	2W: Brass ; 2S: Stainless Steel

Material of Oil Seal	NBR, EPDMVITON / NBR, EPDM or VITON

Voltage:DC - 12V,24V AC - 24V,AC 120V, [email protected] 110V, [email protected] Tolerance: +/- 10%
Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304

Shading Rings - Stainless Steel 304Characteristic: 1.Direct lifting diaphragm construction;2.Open from zero bar for low pressure system use;3.High frequency of DIN plug coil4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.5.Pressure: 0.00MPa ~ 1.0MPa.6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1Temperature:NBR Seal: 14F to 176F , -10 to 80EPDM Seal: 14F to 250F , -10 to 120VITON Seal : 14F to 300F, -10 to 150.Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2Orifice (mm): 12,15,20,25,32,40,50
